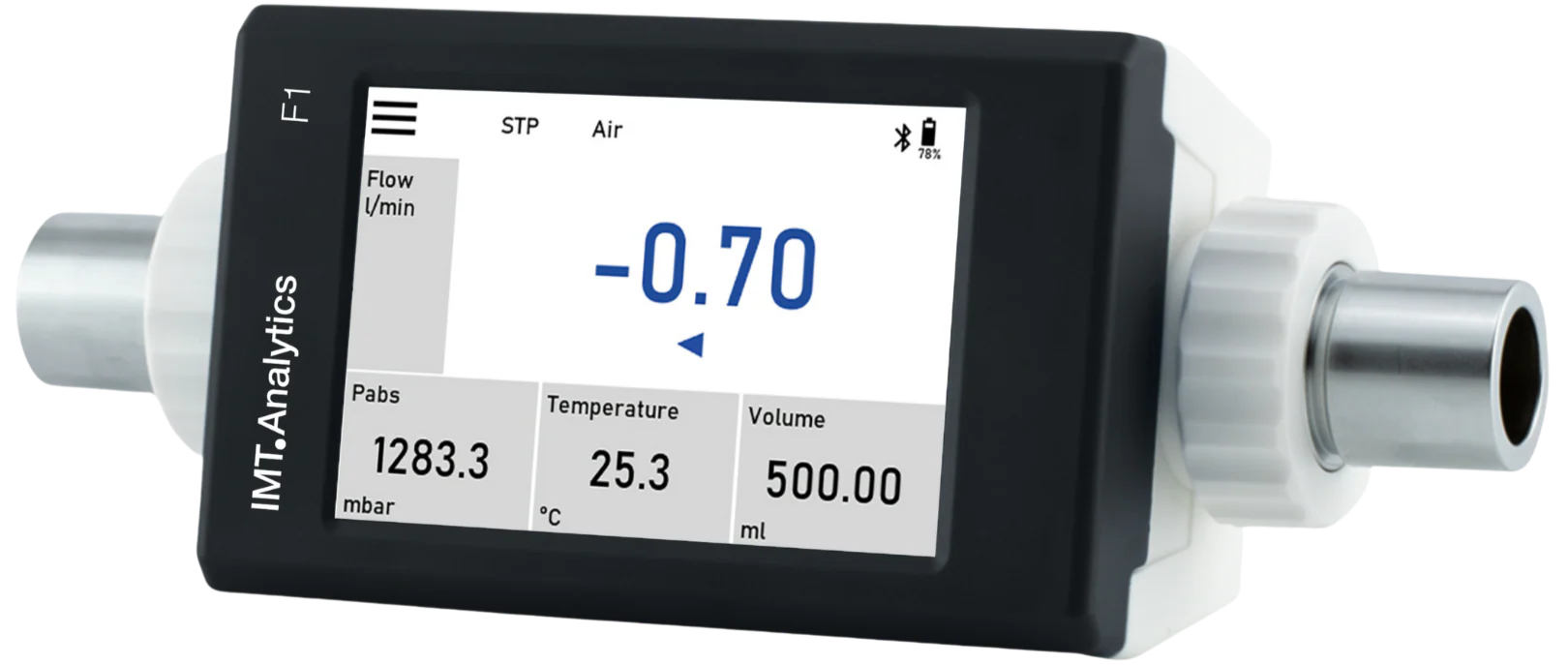

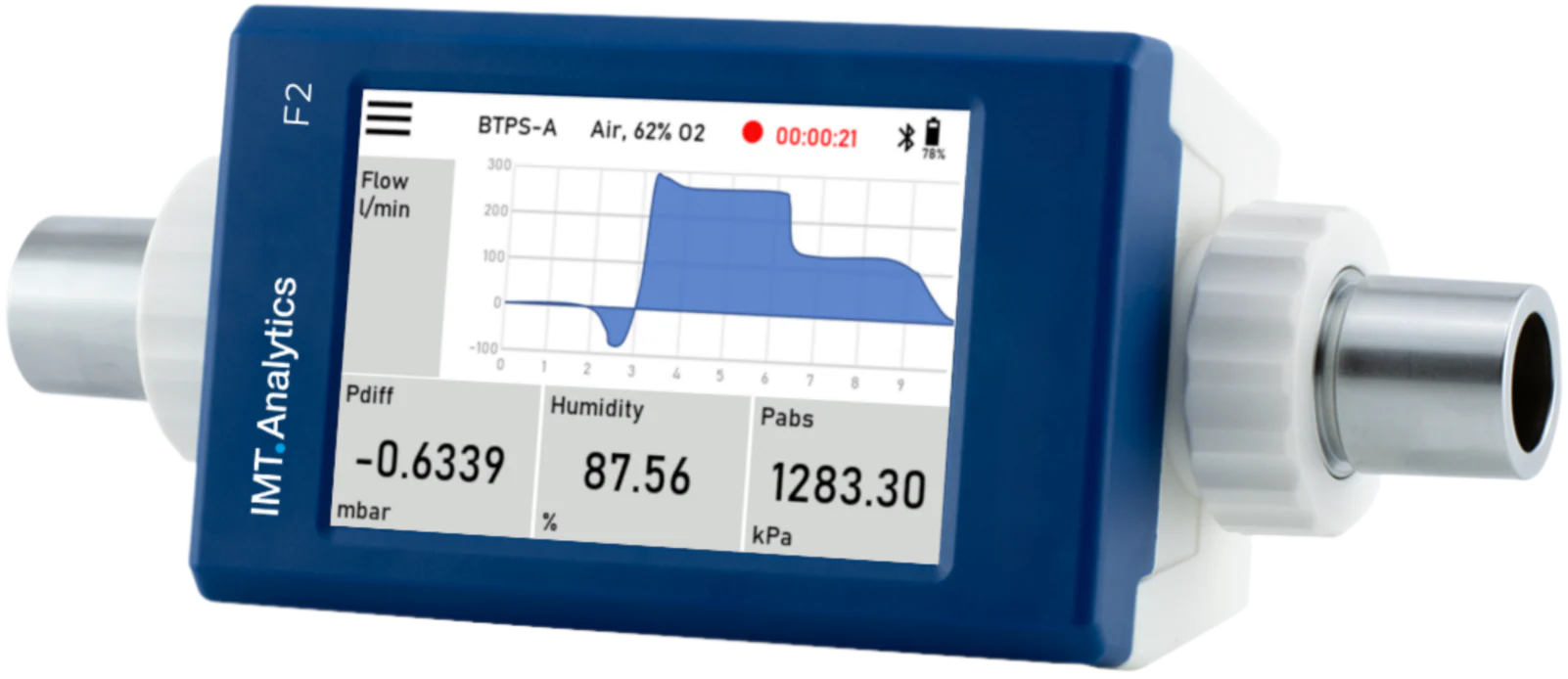

IMT FlowMeter F1 & F2 – Compact portable gas flow analysers

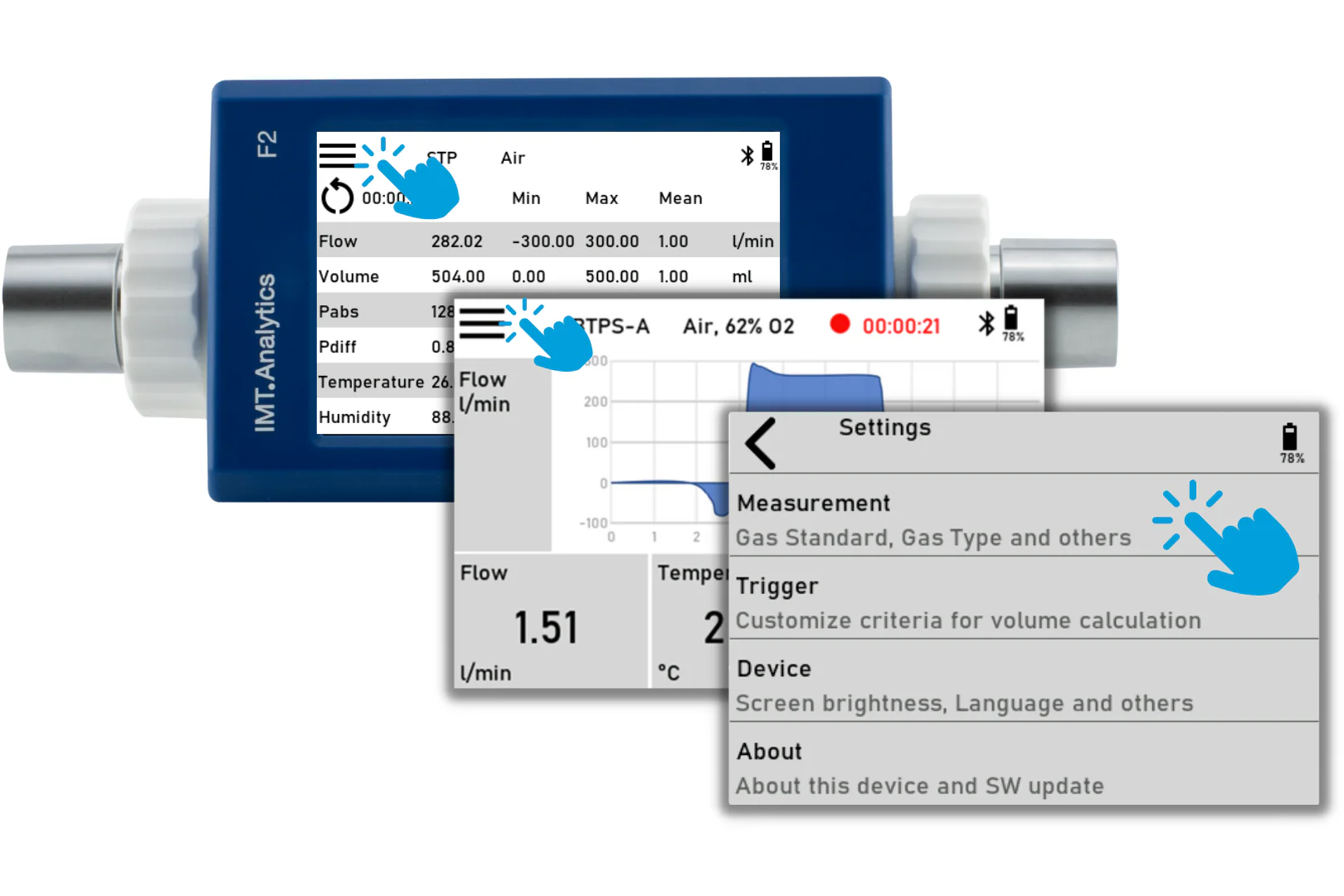

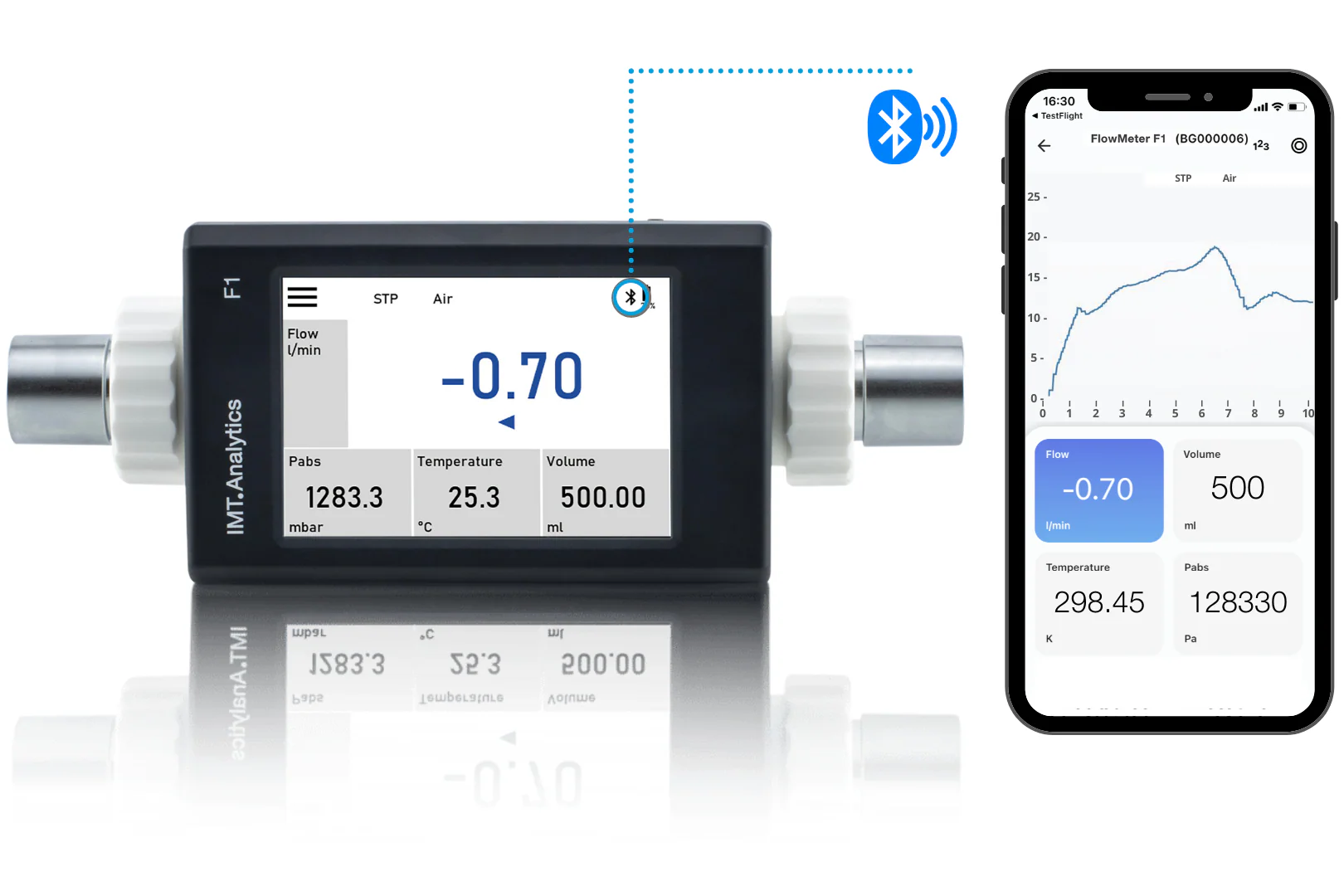

Technical specifications: Compact battery-powered device with patented multi-disc measurement technology. 3.5″ touchscreen display, 4+ hours of battery life, Bluetooth connectivity. ISO 17025 calibration traceability.
Professional device: Biomedical engineers, field service technicians. Not direct patient. Testing of respiratory/oxygen equipment used on patients of various ages.
| Specification | FlowMeter F1 | FlowMeter F2 |
| Accuracy | ±1.9% | ±1.7% |
| Flow Range | ±300 L/min bidirectional | ±300 L/min bidirectional |
| Pressure | Measured absolute pressure | Measured absolute pressure |
| Humidity | Not included | Included (F2 only) |
| Display | 3.5″ touchscreen | 3.5″ touchscreen |
| Battery | 4+ hours of operation | 4+ hours of operation |
| Connectivity | Bluetooth | Bluetooth |
| Calibration | ISO 17025 traceability | ISO 17025 traceability |
Clinical applications: Portable calibration verification of ventilators, oxygen concentrators, CPAP/BiPAP systems, anaesthesia machines, spirometers, medical gas delivery devices. Field testing of permanent/semi-permanent installations.
Specific features: Consolidated device replaces multiple instruments. Field portability, extended battery life, real-time touchscreen display, automated CSV data export. Multi-disc technology for exceptional measurement accuracy (±1.65-1.9%).
The full datasheet of the Flow Meter F1 & F2 is available on demand.
